4 Channel Video Wall Controller Processor 2x2 4 TV Splicing Display Unit

Ελεγκτής βίντεο 4 καναλιών Επεξεργαστής τοίχου τηλεόρασης 2x2 με χειριστήριο για οριζόντια τοποθέτηση.

Περιγραφή προϊόντος:

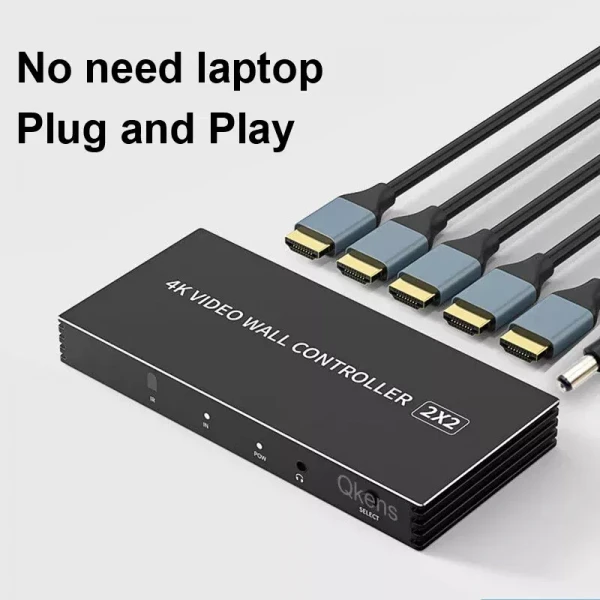

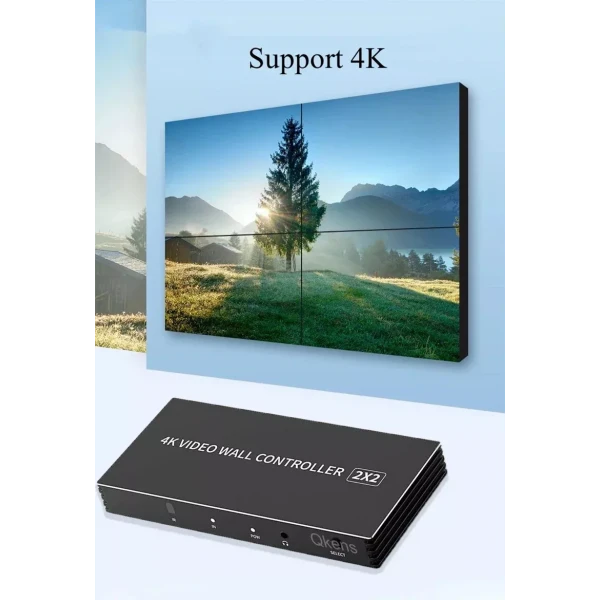

New 4K 2x2 HDMI Video Wall Controller Multi-screen Splicing Box

1x2 1x3 1x4 2x1 3x1 4x1 2 3 4 TV Splicer Video Processor

Product Description:

Brand new and high quality,buy with confidence!

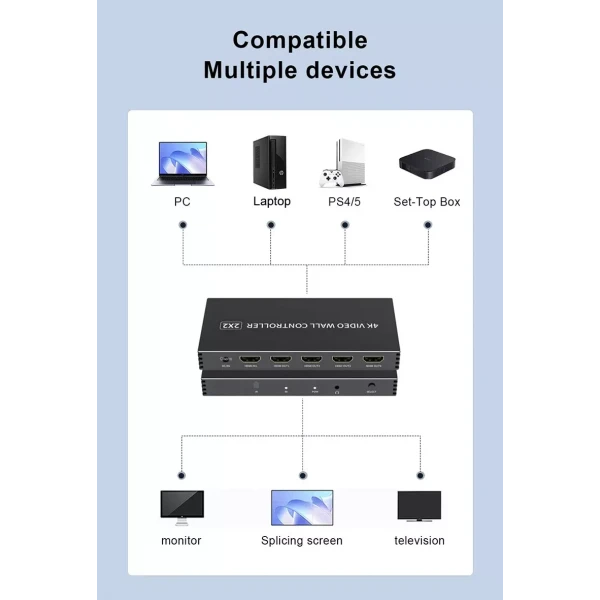

Our this 4K 2X2 video wall controller,support 1 HDMI input and 4 HDMI output, the main function is to divide

a complete HDMI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection unit,

LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall.

Features:

* Support 1 HDMI input;

* Support 4 HDMI output;

* Support IR remote control;

* Support 3.5mm audio extract;

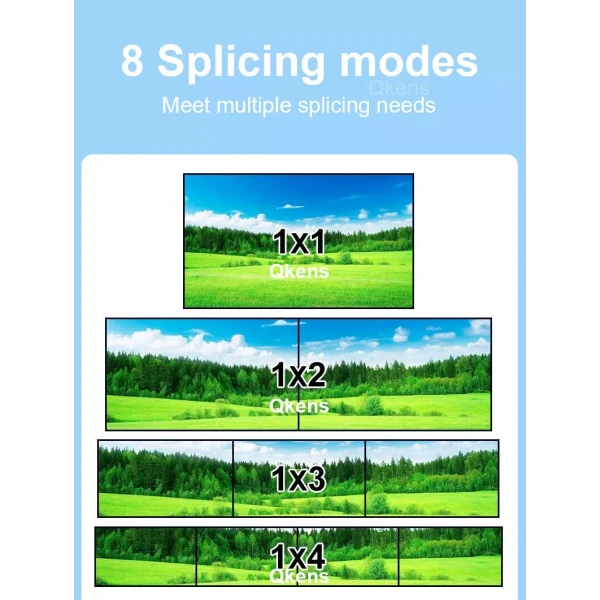

* Support 2X2/1X1/1X2//1X3/1X4/2X1/3X1/4X1 8 splicing modes, easy operation, plug and play;

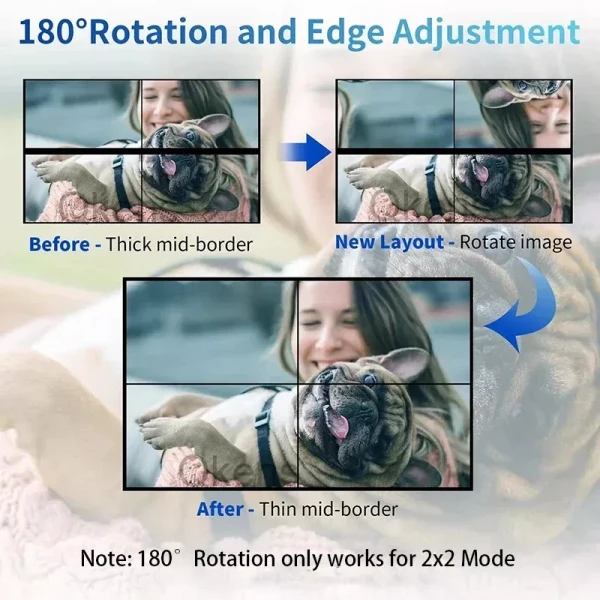

* Support under 2X2 mode,the first row images 180 degree rotate function;

Specifications:

HDMI input resolution ............................................................. support 4K/30Hz input

HDMI output resolution ..................................................... support 1080P/60Hz output

Support audio format ......................................................................................L/R stereo

Input cable length ......................................................... ≤10m AWG24 HDMI standard cable

Output cable length ................................................ ≤15M,AWG24 HDMI standard cable

Max working current ...................................................................................... 5V/1A

Operating Temperature range ........................................................... (-15℃～ +55℃)

Dimension (L x W x H) ...........................................................approx. 137x73x16(mm)

Weight ...................................................................................................approx. 191g

Important note:

1)This product is used for horizontal screens,cannot be used for vertical screens

  (if need to use for vertical screens,pls contact us to recommend for you).

2)The 4K refers to the HDMI inputs signal only.It supports up to 4K 30Hz in and 1080P 60Hz out.

3) 180° rotatation only works under 2X2 mode and 1080P resolution.

Package Includes:

1PCS 4K 2X2 Video wall controller

1PCS USB power supply cable

1PCS Remote controller without battery

1PCS User guide

NO Retail box and other accessories,if any need,pls contact us before purchase.
