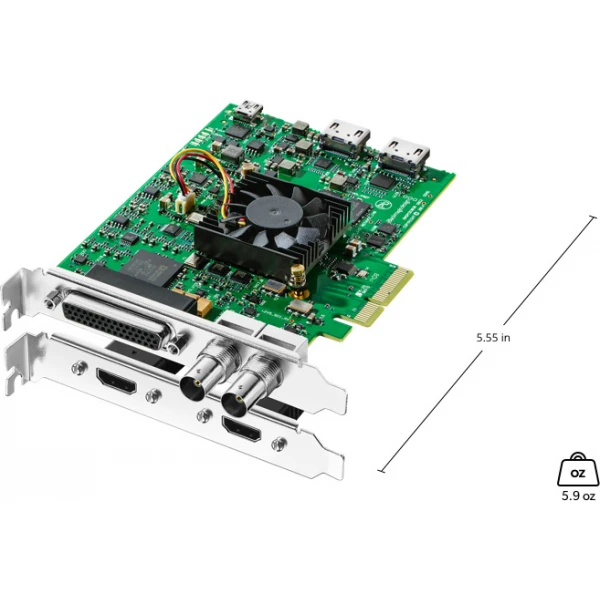

DeckLink Studio 4K

Εάν εργάζεστε με ένα ευρύ φάσμα αναλογικού βίντεο και εργαλεία ήχου, και πρέπει να κινείστε απρόσκοπτα μεταξύ SD, HD, 2K και Ultra HD, τότε το Blackmagic Design DeckLink Studio 4Κ είναι τέλειο για σας! Το DeckLink Studio 4K περιλαμβάνει έναν τεράστιο αριθμό αναλογικών και ψηφιακών συνδέσεων βίντεο, συμπεριλαμβανομένων SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU με διακόπτη σε έξοδο 6 ch, black burst και τρι-sync είσοδο αναφοράς, RS-422 deck control connections, keying σε SD και ένα hardware down converter.

Χαρακτηριστικά

Connections

SDI Video Input
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4

SDI Video Output
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4

Analog Video Input
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.

Analog Video Output
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.

HDMI Video Input
1 x HDMI type A connector

HDMI Video Output
1 x HDMI type A connector

Analog Audio Input
4 Channels of professional balanced analog audio via 1/4″ jack connectors.

Analog Audio Output
4 Channels of professional balanced analog audio via 1/4″ jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.

AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.

AES/EBU Audio Output
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.

SDI Audio Input
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.

SDI Audio Output
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.

HDMI Audio Input
8 Channels embedded in SD, HD, 4K.

HDMI Audio Output
8 Channels embedded in SD, HD, 4K

Sync Input
Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or 4K format.

Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCIe Slots.

Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.

Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation
PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.

Software Applications
Apple Final Cut Pro X
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Nuke – The Foundry
DaVinci Resolve
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Adobe Photoshop

Other supported applications include: Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster.

Video Standards

SD Format Support
625/25 PAL, 525/29.97 NTSC.

HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.

2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25.

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.

SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.

Audio Sampling
Television standard sample rate of 48 kHz at 24 bit.

Video Sampling
4:2:2 and 4:4:4 (4K is 4:2:2)

Color Precision
10-bit

Color Space
REC 601, REC 709

HDMI Configuration
HDMI automatically configures to connected display.

HDMI Resolution
Pixel for pixel up to 4K resolutions.

HDMI Color Precision
8-bit RGB, 10-bit YUV

Multiple Rate support
HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD.

Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing
Colorspace Conversion
Hardware based real time.

HD Down Conversion
Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.

Cross Conversion
Built-in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.

Real Time Effects
Apple Final Cut Pro™ internal effects. Adobe® Premiere Pro® Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve.

Operating Systems
Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.
Windows 7 or Windows 8.
Linux

EMC Certifications
FCC, CE and C-Tick

Environmental Specifications
Operating Temperature 5° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing

What’s Included
DeckLink Studio 4K
SD Card
Breakout cable for analog and RS-422 control.
HDMI bracket
