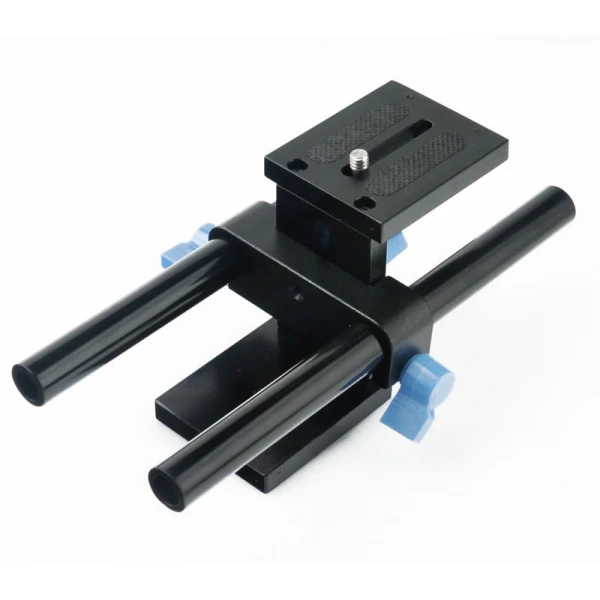

PhotoCame RS-3 Aluminium Rail System Baseplate Mount

Features:

The rail system has a central tripod mounting plate that makes a perfect balance between the camera and the front mount accessories (35mm Adapter/Mattebox/Follow Focus) It also has built-in Lens Support which is very useful accessory to support any lens Made of durable anodized black aluminum alloy, stainless steel and rubber blanket Enables use of standard accessories for the 15mm rod system. Rails mount is adjustable in height. Equipped with a quick release plate that enables to the quick attachment of the camera and easily slide into the adapter .The quick release plate comes with 1/4" camera mounting screws
Specifications:

Material: Aluminum Alloy

Rails Length: Approx.180mm/7.09"

Rails Diameter: Approx.15mm/0.59"

Rails center-to- center Distance: Approx.60mm/2.36"

Camera height riser adapter length: Approx.85mm/3.35"
Thickness of height riser adapter: Approx.8mm/0.31"
Lens support length: Approx.65mm/2.56"
Tripod mounting plate length: Approx.80mm/3.15"
Tripod mounting plate thickness: Approx.20mm/0.79"

Screws Thread: 1/4"
